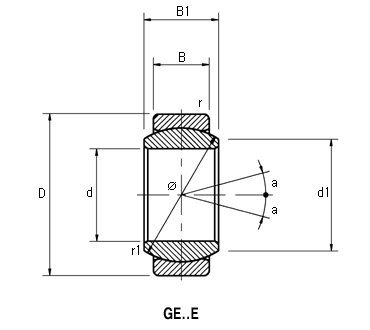

급유형, mm치수, 일반형

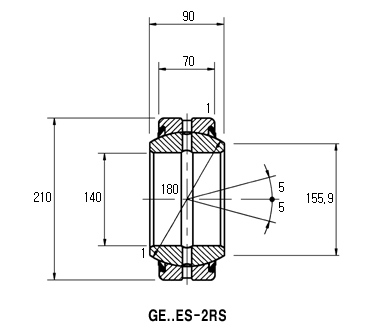

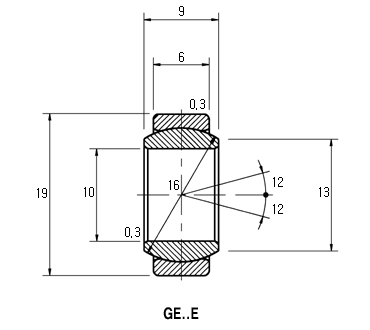

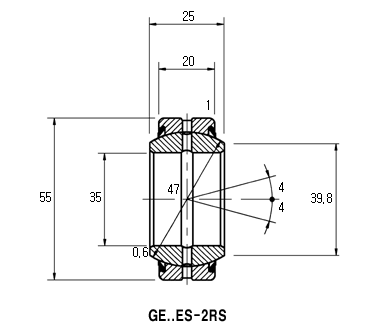

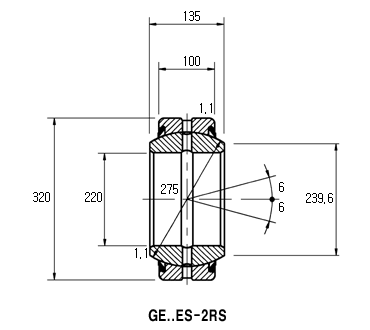

● 하단의 호칭번호를 클릭하시면 각 호칭번호에 해당하는 수치가 적용된 도면(상단)을 확인하실 수 있습니다.

※ 좌/우로 스크롤하시면 내용을 확인하실 수 있습니다.

호칭번호		질량 gr.	주 요 치 수 mm										동부하 용량 C/Kgf	정부하 용량 Co/Kgf
표 준 형	씰 형	질량 gr.	d	D	B	B1	d1	ø	r1 min	r min	a	a1	동부하 용량 C/Kgf	정부하 용량 Co/Kgf
GE 10E		12	10	19	6	9	13	16	0.3	0.3	12		960	5,760
GE 12E		17	12	22	7	10	15	18	0.3	0.3	11		1,260	7,560

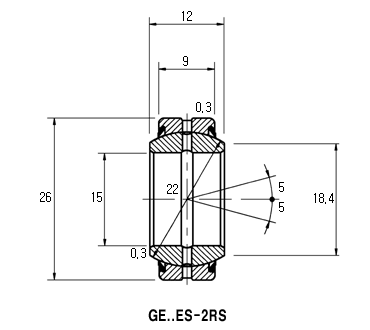

GE 15ES	GE 15ES-2RS	32	15	26	9	12	18.4	22	0.3	0.3	8	5	1,980	11,900

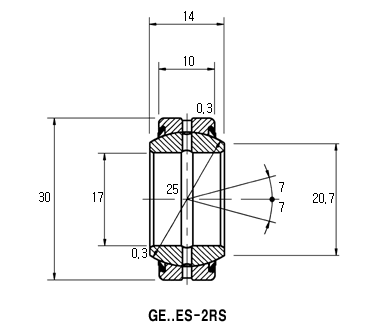

GE 17ES	GE 17ES-2RS	49	17	30	10	14	20.7	25	0.3	0.3	10	7	2,500	15,000
GE 20ES	GE 20ES-2RS	65	20	35	12	16	24.2	29	0.3	0.3	9	6	3,480	20,900

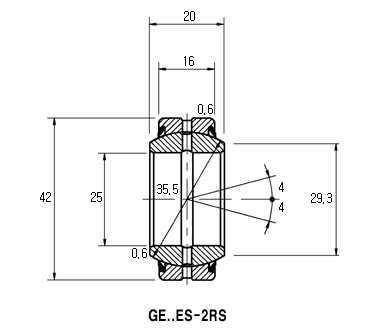

GE 25ES	GE 25ES-2RS	115	25	42	16	20	29.3	35.5	0.6	0.6	7	4	5,680	34,100
GE 30ES	GE 30ES-2RS	160	30	47	18	22	34.2	40.7	0.6	0.6	6	4	7,330	44,000
GE 35ES	GE 35ES-2RS	258	35	55	20	25	39.8	47	0.6	1	6	4	9,400	56,400
GE 40ES	GE 40ES-2RS	315	40	62	22	28	45	53	0.6	1	7	4	11,700	70,000
GE 45ES	GE 45ES-2RS	413	45	68	25	32	50.8	60	0.6	1	7	4	15,000	90,000
GE 50ES	GE 50ES-2RS	560	50	75	28	35	56	66	0.6	1	6	4	18,500	111,000
GE 60ES	GE 60ES-2RS	1,100	60	90	36	44	66.8	80	1	1	6	3	28,800	173,000
GE 70ES	GE 70ES-2RS	1,540	70	105	40	49	77.9	92	1	1	6	4	36,800	221,100
GE 80ES	GE 80ES-2RS	2,290	80	120	45	55	89.4	105	1	1	6	4	47,300	284,000

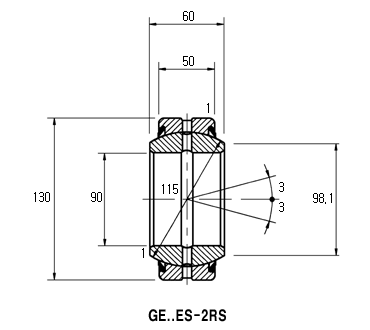

GE 90ES	GE 90ES-2RS	2,820	90	130	50	60	98.1	115	1	1	5	3	57,500	345,000

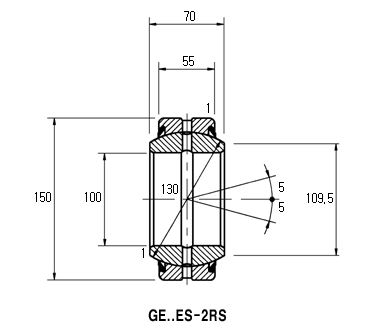

GE 100ES	GE 100ES-2RS	4,430	100	150	55	70	109.5	130	1	1	7	5	71,500	429,000
GE 110ES	GE 110ES-2RS	4,940	110	160	55	70	121.2	140	1	1	6	4	77,000	462,000
GE 120ES	GE 120ES-2RS	8,120	120	180	70	85	135.6	160	1	1	6	4	112,000	672,000
GE 140ES	GE 140ES-2RS	11,400	140	210	70	90	155.9	180	1	1	7	5	126,000	756,000
GE 160ES	GE 160ES-2RS	14,400	160	230	80	105	170.2	200	1	1	8	6	160,000	960,000

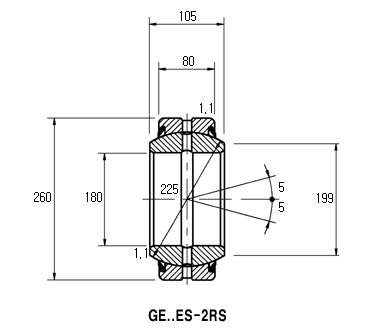

GE 180ES	GE 180ES-2RS	18,900	180	260	80	105	199	225	1.1	1.1	6	5	180,000	1,080,000

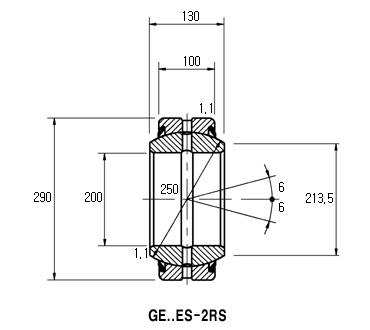

GE 200ES	GE 200ES-2RS	28,100	200	290	100	130	213.5	250	1.1	1.1	7	6	250,000	1,500,000
GE 220ES	GE 220ES-2RS	36,100	220	320	100	135	239.6	275	1.1	1.1	8	6	275,000	1,650,000
GE 240ES	GE 240ES-2RS	40,400	240	340	100	140	265.3	300	1.1	1.1	8	6	300,000	1,800,000

주) 현재 GE 200ES 까지 생산합니다.
