NK

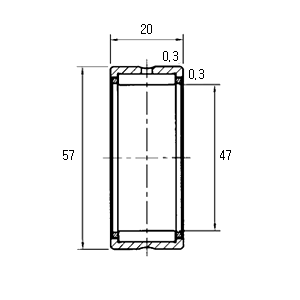

● 하단의 호칭번호를 클릭하시면 각 호칭번호에 해당하는 수치가 적용된 도면(상단)을 확인하실 수 있습니다.

호칭번호

NK 14/16
NK 14/20
NK 15/16
NK 15/20
NK 16/16
NK 16/20
NK 17/16
NK 17/20
NK 18/16
NK 18/20
NK 19/16
NK 19/20
NK 20/16
NK 20/20
NK 21/16
NK 21/20
NK 22/16
NK 22/20
NK 24/16
NK 24/20
NK 25/16
NK 25/20
NK 26/16
NK 26/20
NK 28/20
NK 28/30
NK 29/20
NK 29/30
NK 30/20
NK 30/30
NK 32/20
NK 32/30
NK 35/20
NK 35/30
NK 37/20
NK 37/30
NK 38/20
NK 38/30
NK 40/20
NK 40/30
NK 42/20
NK 42/30
NK 43/20
NK 43/30
NK 45/20
NK 45/30
NK 47/20
NK 47/30
NK 50/25
NK 50/35
NK 55/25
NK 55/35

※ 좌/우로 스크롤하시면 내용을 확인하실 수 있습니다.

호칭번호	주 요 치 수 mm				기본 동정격 하중 C N	기본 정정격 하중 Co N	피로 하중 한계 Pu N	정격회전 윤활 그리스 r min	오일 r min	무게 kg	받침과 필렛 치수 mm			적절한 씨일링 링 치수 mm
호칭번호	Fw	D	C	r₁₂	기본 동정격 하중 C N	기본 정정격 하중 Co N	피로 하중 한계 Pu N	정격회전 윤활 그리스 r min	오일 r min	무게 kg	Fw	Da 최대	ra 최대	적절한 씨일링 링 치수 mm
NK 14/16	14	22	16	0.3	10,200	12,500	1,530	17,000	26,000	0.021	14	20	0.3	14 x 22 x 3
NK 14/20	14	22	20	0.3	12,800	16,600	2,080	17,000	26,000	0.026	14	20	0.3	14 x 22 x 3
NK 15/16	15	23	16	0.3	11,000	14,000	1,700	16,000	24,000	0.022	15	21	0.3	15 x 23 x 3
NK 15/20	15	23	20	0.3	13,800	18,300	22,800	16,000	24,000	0.027	15	21	0.3	15 x 23 x 3
NK 16/16	16	24	16	0.3	11,700	15,300	1,860	16,000	24,000	0.022	16	22	0.3	16 x 24 x 3
NK 16/20	16	24	20	0.3	14,500	20,000	2,500	16,000	24,000	0.032	16	22	0.3	16 x 24 x 3
NK 17/16	17	25	16	0.3	12,100	16,600	2,000	15,000	22,000	0.029	17	23	0.3	17 x 25 x 3
NK 17/20	17	25	20	0.3	15,100	22,000	2,750	15,000	22,000	0.030	17	23	0.3	17 x 25 x 3
NK 18/16	18	26	16	0.3	12,800	17,600	2,160	15,000	22,000	0.025	18	24	0.3	18 x 26 x 4
NK 18/20	18	26	20	0.3	16,100	23,600	3,000	15,000	22,000	0.032	18	24	0.3	18 x 26 x 4
NK 19/16	19	27	16	0.3	13,400	19,000	2,320	14,000	20,000	0.026	19	25	0.3	19 x 27 x 4
NK 19/20	19	27	20	0.3	16,500	25,500	3,200	14,000	20,000	0.032	19	25	0.3	19 x 27 x 4
NK 20/16	20	28	16	0.3	13,200	19,300	2,360	13,000	19,000	0.027	20	26	0.3	20 x 28 x 4
NK 20/20	20	28	20	0.3	16,500	25,500	3,200	13,000	19,000	0.034	20	26	0.3	20 x 28 x 4
NK 21/16	21	29	16	0.3	13,800	20,400	2,500	13,000	19,000	0.028	21	27	0.3	21 x 29 x 4
NK 21/20	21	29	20	0.3	17,200	27,000	3,450	13,000	19,000	0.035	21	27	0.3	21 x 29 x 4
NK 22/16	22	30	16	0.3	14,200	21,600	2,650	12,000	18,000	0.030	22	28	0.3	22 x 30 x 4
NK 22/20	22	30	20	0.3	17,900	29,000	3,650	12,000	18,000	0.037	22	28	0.3	22 x 30 x 4
NK 24/16	24	32	16	0.3	15,400	24,500	3,000	10,000	16,000	0.032	24	30	0.3	24 x 32 x 4
NK 24/20		32	20	0.3	19,000	32,500	4,050	10,000	16,000	0.040		30	0.3	24 x 32 x 4

NK 25/16	25	33	16	0.3	15,100	24,500	3,000	10,000	16,000	0.033	25	31	0.3	25 x 33 x 4
NK 25/20		33	20	0.3	19,000	32,500	4,150	10,000	16,000	0.042		31	0.3	25 x 33 x 4

NK 26/16	26	34	16	0.3	15,700	26,000	3,200	9,500	15,000	0.034	26	32	0.3	26 x 34 x 4
NK 26/20	26	34	20	0.3	19,400	34,500	4,300	9,500	15,000	0.042	26	32	0.3	26 x 34 x 4
NK 28/20	28	37	20	0.3	22,000	36,500	4,650	9,000	14,000	0.052	28	35	0.3	28 x 37 x 4
NK 28/30		37	30	0.3	31,900	60,000	7,800	9,000	14,000	0.082		35	0.3	28 x 37 x 4

NK 29/20	29	38	20	0.3	22,000	36,500	4,650	9,000	14,000	0.054	29	36	0.3	29 x 38 x 4
NK 29/30	29	38	30	0.3	31,900	60,000	7,800	9,000	14,000	0.084	29	36	0.3	29 x 38 x 4
NK 30/20	30	40	20	0.3	22,900	38,000	49,000	8,500	13,000	0.065	30	38	0.3	30 x 40 x 4
NK 30/30		40	30	0.3	33,000	63,000	8,150	8,500	13,000	0.098		38	0.3	30 x 40 x 4

NK 32/20	32	42	20	0.3	23,300	40,500	52,000	8,000	12,000	0.068	32	40	0.3	32 x 42 x 4
NK 32/30		42	30	0.3	34,100	65,500	8,650	8,000	12,000	0.10		40	0.3	32 x 42 x 4

NK 35/20	35	45	20	0.3	24,600	45,000	5,700	7,500	11,000	0.074	35	43	0.3	35 x 45 x 4
NK 35/30		45	30	0.3	35,800	72,000	9,500	7,500	11,000	0.11		43	0.3	35 x 45 x 4

NK 37/20	37	47	20	0.3	25,100	46,500	5,850	7,500	1,100	0.077	37	45	0.3	37 x 47 x 4
NK 37/30		47	30	0.3	36,900	76,500	10,000	7,500	11,000	0.11		45	0.3	37 x 47 x 4

NK 38/20	38	48	20	0.3	25,500	49,000	6,200	7,500	11,000	0.080	38	46	0.3	38 x 48 x 4
NK 38/30	38	48	30	0.3	37,400	8,000	10,400	7,500	11,000	0.12	38	46	0.3	38 x 48 x 4
NK 40/20	40	50	20	0.3	26,400	51,000	6,400	7,000	10,000	0.083	40	48	0.3	40 x 50 x 4
NK 40/30		50	30	0.3	38,000	83,000	10,800	7,000	10,000	0.13		48	0.3	40 x 50 x 4

NK 42/20	42	52	20	0.3	27,000	53,000	6,700	6,700	9,500	0.86	42	50	0.3	42 x 52 x 4
NK 42/30	42	52	30	0.3	39,100	86,500	11,200	6,700	9,500	0.13	42	50	0.3	42 x 52 x 4
NK 43/20	43	53	20	0.3	27,500	55,000	6,950	6,700	9,500	0.086	43	51	0.3	43 x 53 x 4
NK 43/30		53	30	0.3	40,200	90,000	11,600	6,700	9,500	0.13		51	0.3	43 x 53 x 4

NK 45/20	45	55	20	0.3	27,500	57,000	7,200	6,300	9,000	0.092	45	53	0.3	45 x 55 x 4
NK 45/30		55	30	0.3	40,200	93,000	12,000	6,300	9,000	0.14		53	0.3	45 x 55 x 4

NK 47/20	47	57	20	0.3	29,200	61,000	7,650	6,000	8,500	0.095	47	55	0.3	-
NK 47/30	47	57	30	0.3	41,800	98,000	12,900	6,000	8,500	0.14	47	55	0.3	-
NK 50/25	50	62	25	0.6	3,800	78,000	10,000	5,600	8,000	0.16	50	58	0.6	50 x 62 x 5
NK 50/35		62	35	0.6	49,500	110,000	14,300	5,600	8,000	0.22		58	0.6	50 x 62 x 5

NK 55/25	55	68	25	0.6	40,200	88,000	11,200	5,300	7,500	0.18	55	64	0.6	55 x 68 x 8
NK 55/35		68	35	0.6	52,300	122,000	16,000	5,300	7,500	0.25		64	0.6	55 x 68 x 8
NKS 55		72	22	1	44,600	78,000	10,000	5,000	7,000	0.22		67	1	55 x 72 x 8
