CF..V

Filling type, mm sized

※ Oil nipple is installed on products’ head starting from CF 12 V.

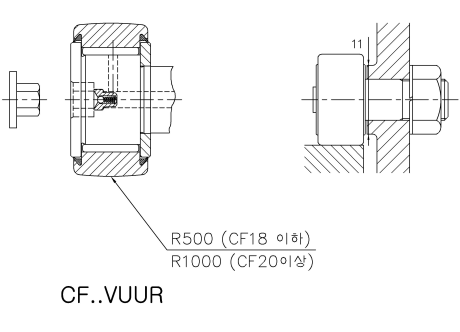

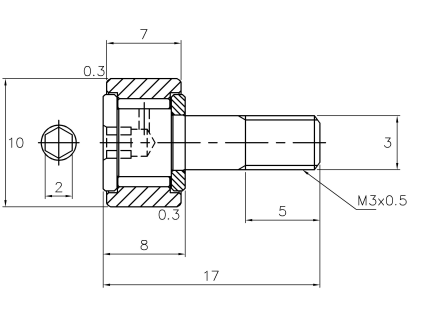

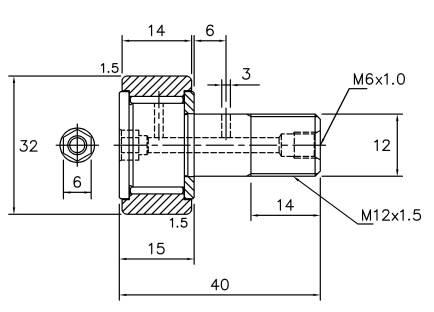

● Click on the bearing number below to view the drawing (upper) with applicable dimension for the corresponding bearing number.

※ You can check the contents by scrolling left / right.

Stud Diameter G mm	Bearing Number				Weight gr.	Major Dimensions mm											Installation Dimensions f Minimum mm	Basic Dynamic Rated Load C/kgf	Basic Static Rated Load Co/Kgf	Allowed RPM
	No Sealant Applied		Sealant Applied			Major Dimensions mm

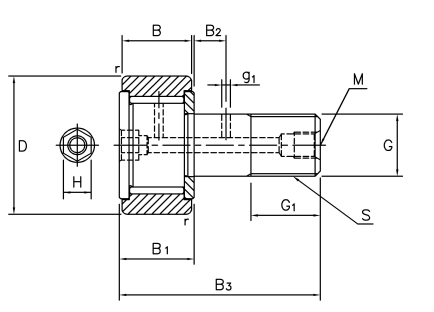

	Cylindrical Outer Ring	Spherical Outer Ring	Cylindrical Outer Ring	Spherical Outer Ring		H	D	Screw S	B	B₁	B₃	M	g₁	G₁	B₂	r
	CF..V	CF..VR	CF..VUU	CF..VUUR		H	D	Screw S	B	B₁	B₃	M	g₁	G₁	B₂	r
3	*CF 3V	CF 3VR	CF 3VUU	CF 3VUUR	5	2	10	M3 x 0.5	7	8	17			5		0.3	6.8	290	440	20,000

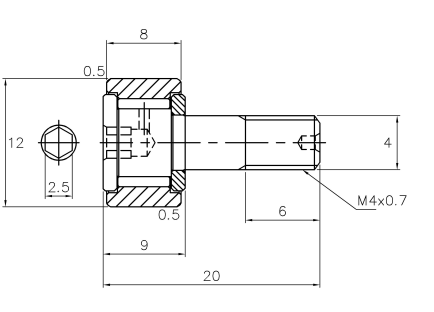

4	*CF 4V	CF 4VR	CF 4VUU	CF 4VUUR	8	2.5	12	M4 x 0.7	8	9	20			6		0.5	8.6	400	540	17,000

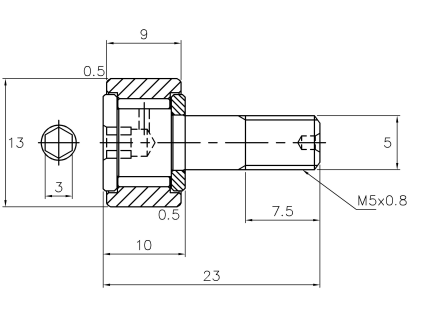

5	CF 5V	CF 5VR	CF 5VUU	CF 5VUUR	11	3	13	M 5 x 0.8	9	10	23			7.5		0.5	9.7	520	650	15,000
6	CF 6V	CF 6VR	CF 6VUU	CF 6VUUR	19	3	16	M 6 x 1.0	11	12	28			9		0.5	11	720	870	12,000
8	CF 8V	CF 8VR	CF 8VUU	CF 8VUUR	29	4	19	M 8x 1.25	11	12	32			11		0.5	13	840	1,150	9,000
10	CFA 10V	CFA 10VR	CFA 10VUU	CFA 10VUUR	46	4	22	M10 x 1.0	12	13	36			13		1	15	980	1,480	7,500

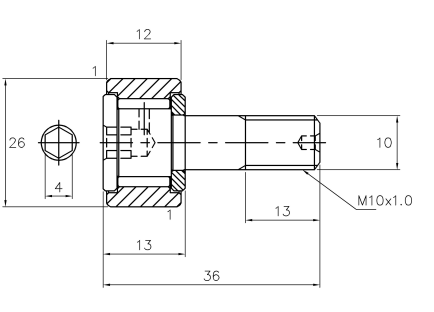

10	CFA 10-1V	CFA 10-1VR	CFA 10-1VUU	CFA 10-1VUUR	61	4	26	M10 x 1.0	12	13	36			13		1	15	980	1,480	7,500

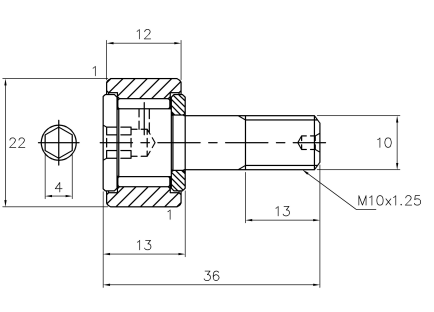

10	CF 10V	CF 10VR	CF 10VUU	CF 10VUUR	46	4	22	M10 x 1.25	12	13	36			13		1	15	980	1,480	7,500
10	CF 10-1V	CF 10-1VR	CF 10-1VUU	CF 10-1VUUR	61	4	26	M10 x 1.25	12	13	36			13		1	15	980	1,480	7,500
12	CF 12V	CF 12VR	CF 12VUU	CF 12VUUR	97	6	30	M12 x 1.5	14	15	40	M6 x 1	3	14	6	1.5	20	1,380	2,010	6,000
12	CF 12-1V	CF 12-1VR	CF 12-1VUU	CF 12-1VUUR	107	6	32	M12 x 1.5	14	15	40	M6 x 1	3	14	6	1.5	20	1,380	2,010	6,000
16	CF 16V	CF 16VR	CF 16VUU	CF 16VUUR	173	6	35	M16 x 1.5	18	19.5	52	M6 x 1	3	18	8	1.5	24	2,120	3,840	4,500
18	CF 18V	CF 18VR	CF 18VUU	CF 18VUUR	255	10	40	M18 x 1.5	20	21.5	58	M6 x 1	3	20	10	1.5	26	2,590	5,240	3,500
20	CF 20V	CF 20VR	CF 20VUU	CF 20VUUR	465	10	52	M20 x 1.5	24	25.5	66	M6 x 1	4	22	12	1.5	36	3,390	6,590	3,500
20	CF 20-1V	CF 20-1VR	CF 20-1VUU	CF 20-1VUUR	390	10	47	M20 x 1.5	24	25.5	66	M6 x 1	4	22	12	1.5	36	3,390	6,590	3,500
24	CF 24V	CF 24VR	CF 24VUU	CF 24VUUR	820	12	62	M24 x 1.5	29	30.5	80	M6 x 1	4	25	12	1.5	40	4,760	9,390	3,500

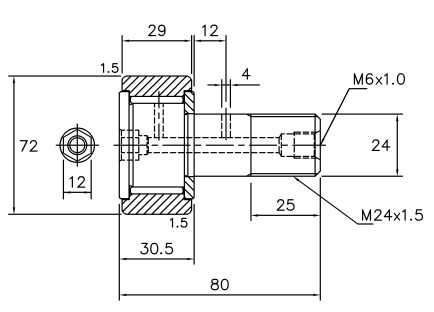

24	CF 24-1V	CF 24-1VR	CF 24-1VUU	CF 24-1VUUR	1,140	12	72	M24 x 1.5	29	30.5	80	M6 x 1	4	25	12	1.5	40	4,760	9,390	3,500
30	CF 30V	CF 30VR	CF 30VUU	CF 30VUUR	1,870	12	80	M30 x 1.5	35	37	100	M6 x 1	4	32	15	2	46	6,910	14,700	2,200

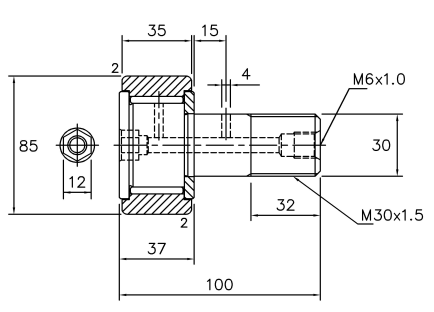

	CF 30-1V	CF 30-1VR	CF 30-1VUU	CF 30-1VUUR	2.030		85
	CF 30-2V	CF 30-2VR	CF 30-2VUU	CF 30-2VUUR	2,220		90

Note) Lubrication oil supply hole is placed on the middle of the shaft. Place a plug wherever it is easier and place the nipple on the other hole and inject grease.
Note) For CFA10 and CFA10-1 series, screw of the stud part is M10 x 1.0.
Note) Performance is approximately 130% under oil lubrication. When sealant is present, allowed RPM is decreased by approximately 40%.
Note) Be sure to close the hexagonal plug after assembly or filling oil.
Note) '*' This item is manufactured upon demand.

CF..V

Filling type, mm sized

Bearing Number
