CF..VM

Filling type, mm sized, stainless

※ Oil nipple is installed on products’ head starting from CF 12 VM.

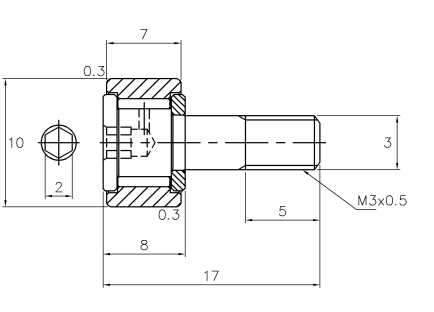

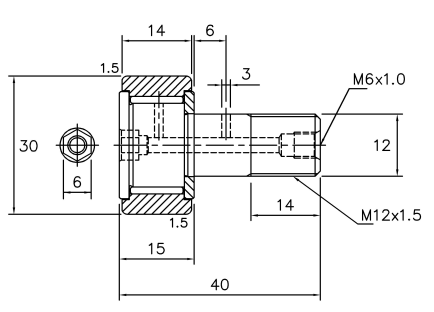

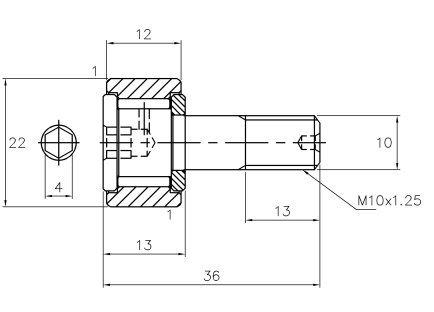

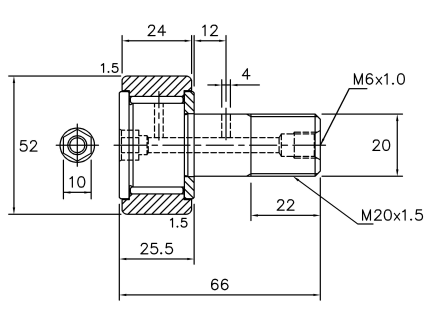

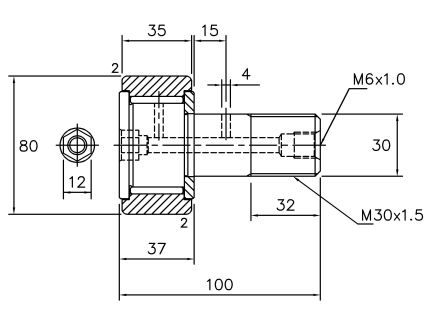

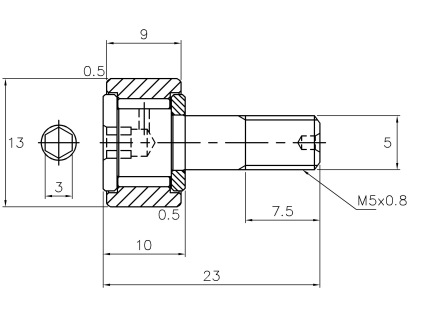

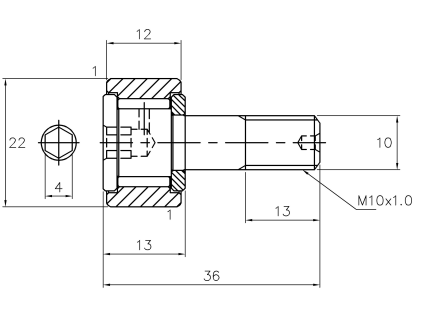

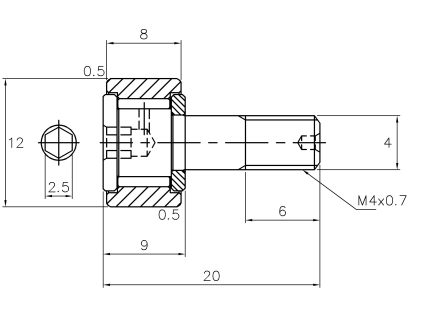

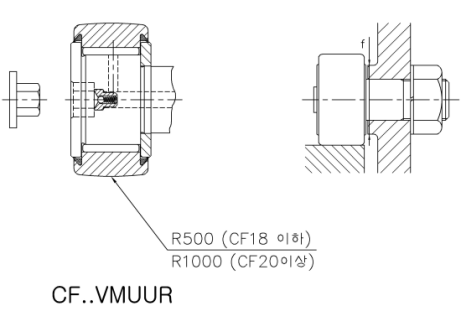

● Click on the bearing number below to view the drawing (upper) with applicable dimension for the corresponding bearing number.

※ You can check the contents by scrolling left / right.

Stud Diameter G mm	Bearing Number				Weight gr.	Major Dimensions mm											Installation Dimensions f Minimum mm	Basic Dynamic Rated Load C/kgf	Basic Static Rated Load Co/Kgf	Allowed RPM
	No Sealant Applied		Sealant Applied			Major Dimensions mm

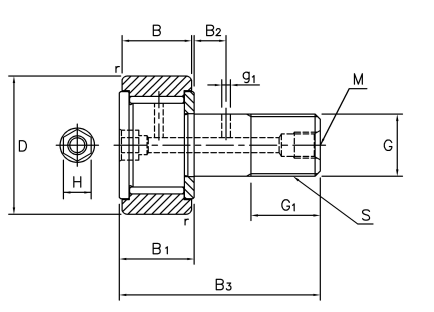

	Cylindrical Outer Ring	Spherical Outer Ring	Cylindrical Outer Ring	Spherical Outer Ring		H	D	Screw S	B	B₁	B₃	M	g₁	G₁	B₂	r

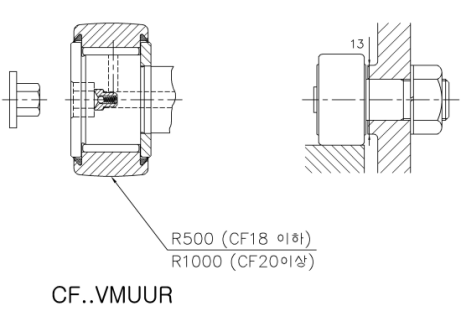

	CF..VM	CF..VMR	CF..VMUU	CF..VMUUR		H	D	Screw S	B	B₁	B₃	M	g₁	G₁	B₂	r
3	CF 3VM	CF 3VMR	CF 3VMUU	CF 3VMUUR	5	2	10	M3 x 0.5	7	8	17			5		0.3	6.8	210	360	18,000
4	CF 4VM	CF 4VMR	CF 4VMUU	CF 4VMUUR	8	2.5	12	M4 x 0.7	8	9	20			6		0.5	8.6	300	440	13,500
5	CF 5VM	CF 5VMR	CF 5VMUU	CF 5VMUUR	11	3	13	M 5 x 0.8	9	10	23			7.5		0.5	9.7	360	520	13,500
6	CF 6VM	CF 6VMR	CF 6VMUU	CF 6VMUUR	19	3	16	M 6 x 1.0	11	12	28			9		0.5	11	520	630	10,800
8	CF 8VM	CF 8VMR	CF 8VMUU	CF 8VMUUR	29	4	19	M 8x 1.25	11	12	32			11		0.5	13	600	830	8,100
10	CFA 10VM	CFA 10VMR	CFA 10VMUU	CFA 10VMUUR	46	4	22	M10 x 1.0	12	13	36			13		1	15	700	1,070	6,300
10	CFA 10-1VM	CFA 10-1VMR	CFA 10-1VMUU	CFA 10-1VMUUR	61	4	26	M10 x 1.0	12	13	36			13		1	15	700	1,070	6,300
10	CF 10VM	CF 10VMR	CF 10VMUU	CF 10VMUUR	46	4	22	M10 x 1.25	12	13	36			13		1	15	700	1,070	6,300
10	CF 10-1VM	CF 10-1VMR	CF 10-1VMUU	CF 10-1VMUUR	61	4	26	M10 x 1.25	12	13	36			13		1	15	700	1,070	6,300
12	CF 12VM	CF 12VMR	CF 12VMUU	CF 12VMUUR	97	6	30	M12 x 1.5	14	15	40	M6 x 1	3	14	6	1.5	20	990	1,450	5,400
12	CF 12-1VM	CF 12-1VMR	CF 12-1VMUU	CF 12-1VMUUR	107	6	32	M12 x 1.5	14	15	40	M6 x 1	3	14	6	1.5	20	990	1,450	5,400
16	CF 16VM	CF 16VMR	CF 16VMUU	CF 16VMUUR	173	6	35	M16 x 1.5	18	19.5	52	M6 x 1	3	18	8	1.5	24	1,520	2,770	4,050
18	CF 18VM	CF 18VMR	CF 18VMUU	CF 18VMUUR	255	10	40	M18 x 1.5	20	21.5	58	M6 x 1	3	20	10	1.5	26	1,860	3,780	3,150
20	CF 20VM	CF 20VMR	CF 20VMUU	CF 20VMUUR	465	10	52	M20 x 1.5	24	25.5	66	M6 x 1	4	22	12	1.5	36	2,440	4,740	3,150
20	CF 20-1VM	CF 20-1VMR	CF 20-1VMUU	CF 20-1VMUUR	390	10	47	M20 x 1.5	24	25.5	66	M6 x 1	4	22	12	1.5	36	2,440	4,740	3,150
24	CF 24VM	CF 24VMR	CF 24VMUU	CF 24VMUUR	820	12	62	M24 x 1.5	29	30.5	80	M6 x 1	4	25	12	1.5	40	3,430	6,760	2,700
24	CF 24-1VM	CF 24-1VMR	CF 24-1VMUU	CF 24-1VMUUR	1,140	12	72	M24 x 1.5	29	30.5	80	M6 x 1	4	25	12	1.5	40	3,430	6,760	2,700
30	CF 30VM	CF 30VMR	CF 30VMUU	CF 30VMUUR	1,870	12	80	M30 x 1.5	35	37	100	M6 x 1	4	32	15	2	46	4,970	10,590	1,800
	CF 30-1VM	CF 30-1VMR	CF 30-1VMUU	CF 30-1VMUUR	2.030		85
	CF 30-2VM	CF 30-2VMR	CF 30-2VMUU	CF 30-2VMUUR	2,220		90

Note) For CFA10 and CFA10-1 series, screw of the stud part is M10 x 1.0.
Note) Be sure to close the hexagonal plug after assembly or filling oil.

CF..VM

Filling type, mm sized, stainless

Bearing Number
